1.27-2.0-2.54 pogo pin perfboard
1.27-2.0-2.54 pogo pin perfboard
Regular price
€3,50 EUR
Regular price
Sale price
€3,50 EUR
Unit price
/
per
Tax included.
Couldn't load pickup availability
This is a perfboard for pogo pins. The perfboard is 95mmX95mmX0.8mm.
Sometimes we need some tools to test or debug or program the chips on the PCBA. We usually use off-shelf test rig. But sometimes it is hard to use it if the test points are in the middle of the board and I don't want to wait weeks to get the custom rig from the workshop.

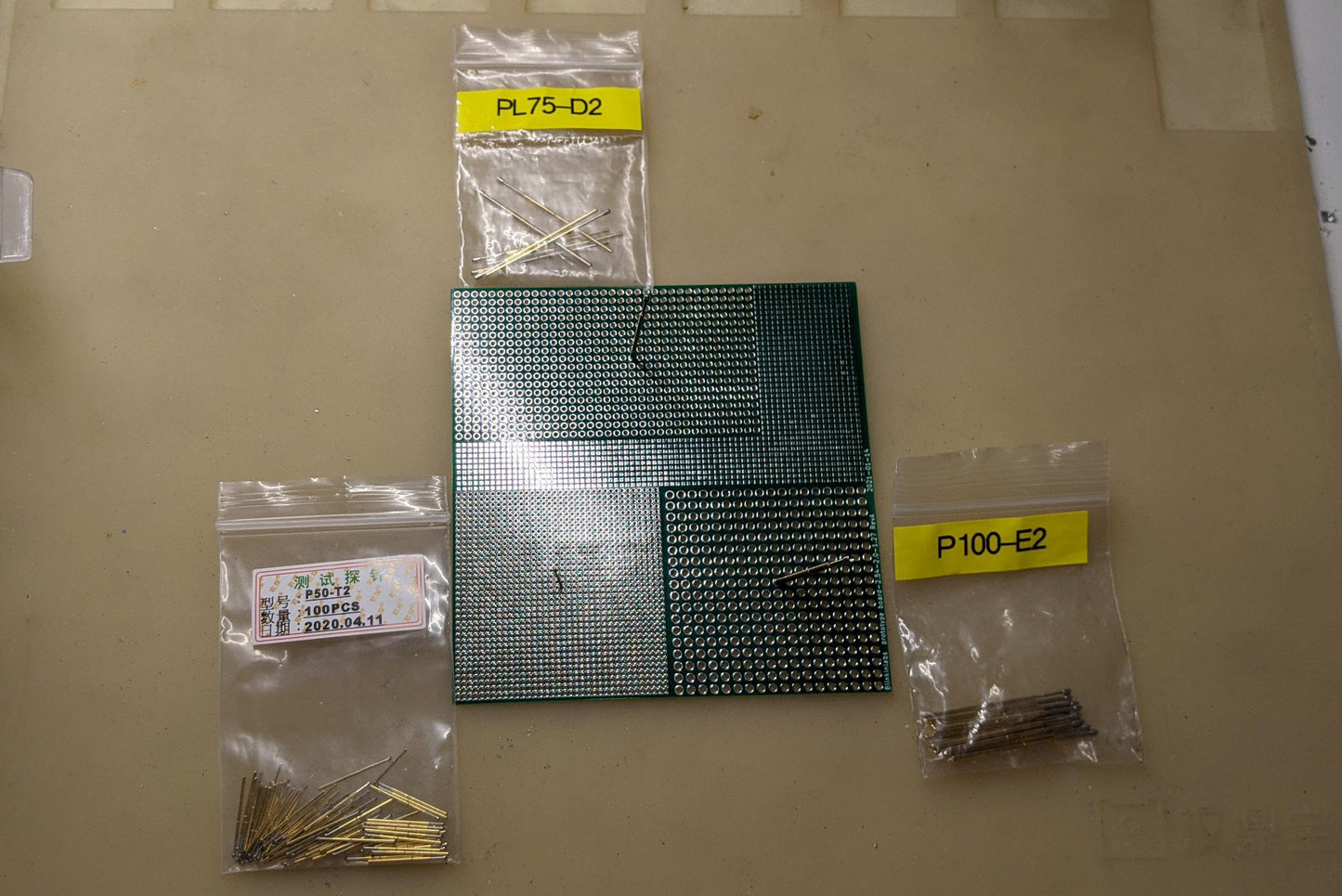

I build this perfboard which i can build my own jig with P50,PL75, P100 pogo pins for different spacing like 1.27/2.0/2.54mm. The board is HASL with 0.8mm thickness which make it easy to cut with shear scissor or copper wire cutter.
